Ranger RA (22+ Styleside) - Blind Spot (BLIS®)/Tail Light Wiring Adapter (PAIR)

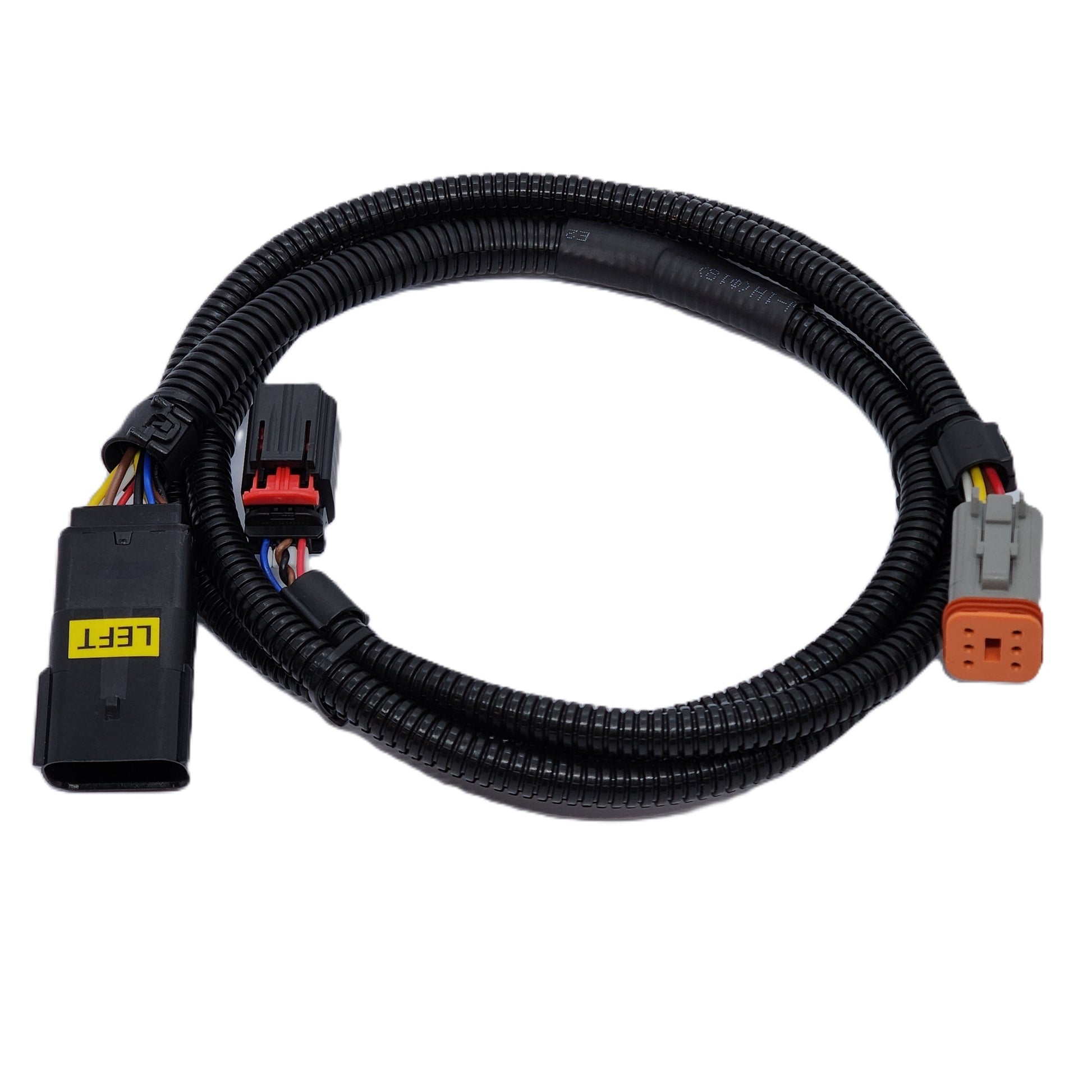

2x Relocation Adapters for 2022+ Next Gen Ford Ranger Styleside (LEFT/RIGHT).

*Raptor includes additional adapters*

Allows the Sonar/BLIS® module to be removed from the factory light and relocated to a location of your choosing.

Designed with OEM specifications in mind, these adapters simply plug in to the original harness on the chassis, and have a 100cm loom for the blind spot, and an 80cm loom for an aftermarket tail light.

Pre-pinned for LED Autolamps lights, and can be easily re-pinned.

Add Deutsch Plug Bare Tails (DPBT) from extras to adapt to other lights.

*Brake/Tail Signal is combined by default, and both lights will illuminate at different brightness levels depending on the voltage received on the signal.

*We advise removing the second resistor connected to the red brake wire on the LED Autolamps lights to avoid overloading this circuit, brake/tail operate on the same circuit, and will illuminate both signals on aftermarket tail lights.

*Premium Pack and Raptor DO NOT need resistors on the indicator signals, our adapters will resolve hyper flash on these vehicles, all other models will need resistors to overcome hyperflash issues.

* Some sequential light models will need circuits added (see options purchase) to fix sequence issues.
**Resistor value on indicator signals must NOT exceed 21w**
